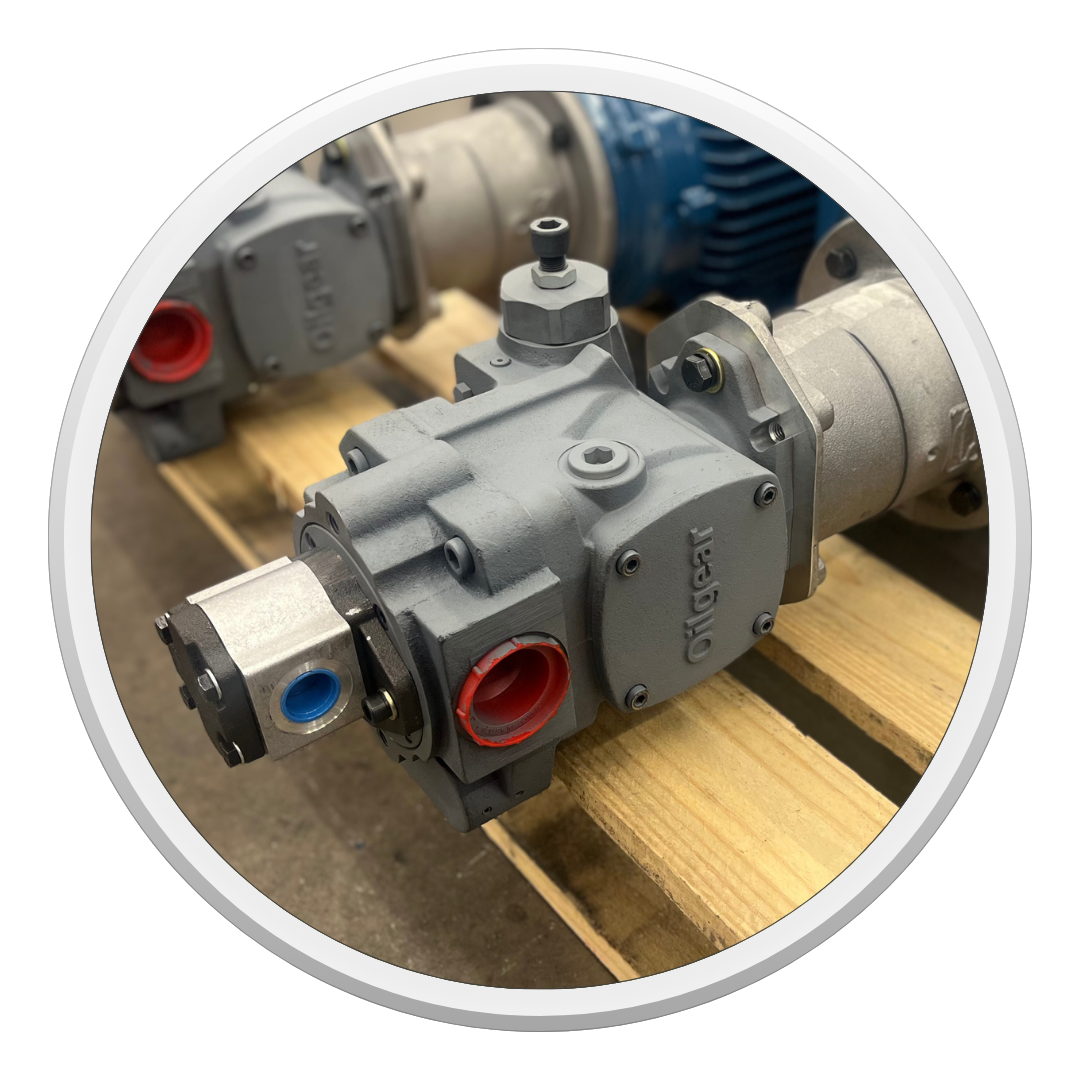

OILGEAR PVM PUMPS
Built Here, Supported Here.
We provide design and assembly
services, along with training, to help customers maintain peak equipment performance.
Through our partnership with Oilgear, SCOTT offers customers PVM variable-displacement axial-piston pumps - new, repair, and rebuild - and replacement parts.
FEATURES AND BENEFITS
- Value engineered
- Rugged, compact design
- Multiple computer-optimized controls
- Advanced “hard-on-hard” technology for longer life
- Available in three frame sizes with multiple displacements
Oilgear's
PVM open loop axial piston hydraulic pumps are virtually indestructible, offering advanced engineering and exceptional value at an affordable price.
With computer-optimized design and various control options, PVM pumps deliver high performance in a compact form.
The Oilgear PVM pumps are engineered to meet the demands of
your most challenging applications.
| PVM pump size | Theoretical maximum displacement | Rated continuous pressure (psi) | Maximum pressure (psi) | |
|---|---|---|---|---|
| in³/rev | ml/rev | |||
| PVM011 | 0.66 | 10,8 | 3,750 | 4,250 |
| PVM014 | 0.86 | 14,1 | 3,750 | 4,250 |
| PVM022 | 1.35 | 22,1 | 3,750 | 4,250 |
| PVM025 | 1.55 | 25,4 | 3,750 | 4,250 |
| PVM034 | 2.06 | 33,8 | 3,750 | 4,250 |
| PVM046 | 2.83 | 46,4 | 3,750 | 4,250 |
| PVM065 | 4.00 | 65,5 | 3,750 | 4,250 |
| PVM075 | 4.61 | 75,5 | 3,750 | 4,250 |
| PVM064 | 3.88 | 63,6 | 3,750 | 4,250 |
| PVM076 | 4.67 | 76,5 | 3,750 | 4,250 |
| PVM098 | 6.00 | 98,3 | 3,750 | 4,250 |
| PVM130 | 7.94 | 130,2 | 3,750 | 4,250 |
All Oilgear PVM pumps are rated to 3,750 psi (259 bar) continuous and 4,250 psi (293 bar) maximum.
| Feature | Oilgear PVM |
|---|---|
| Pump type | Open-loop, variable-displacement axial piston pump |
| Sizes | 3 frame sizes, 12 displacements (PVM011 through PVM130) |
| Displacement | 0.66 to 7.94 in³/rev (10.8 to 130.2 ml/rev) |
| Pressure | 3,750 psi (259 bar) rated continuous; 4,250 psi (293 bar) maximum |
| Speed | Up to 3,600 rpm |
| Rotating group | "Hard-on-hard" design: hardened steel piston shoes on a hardened swashblock for contamination resistance and long life |
| Bearings | Hydrodynamic cylinder barrel support; sealed front bearings |
| Fluids | Suited to low-viscosity and special fluids |
| Mounting | SAE A, B and C, 2-bolt and 4-bolt flanges; SAE spline and keyed shafts |
| Rotation | Field-convertible from right-hand to left-hand with a port plate change |
| Controls | Pressure compensator (adjustable from 350 psi), load sense (180 to 700 psi differential), remote pressure control; multiple pumps on one drive |
Built and supported by Scott Industrial Systems in Dayton, Ohio.
With modular features, the PVM line offers integrators and OEMs the flexibility to tackle real-world challenges.
- Available in three frame sizes and twelve displacements.
- Durable pumps feature Oilgear’s advanced “hard-on-hard” rotating system, providing superior contamination resistance, enabling higher pressure operation, and extending the pump's lifecycle.
With modular features, the PVM line offers integrators and OEMs the flexibility to tackle real-world challenges.
- Available in three frame sizes and twelve displacements.
- Durable pumps feature Oilgear’s advanced “hard-on-hard” rotating system, providing superior contamination resistance, enabling higher pressure operation, and extending the pump's lifecycle.
